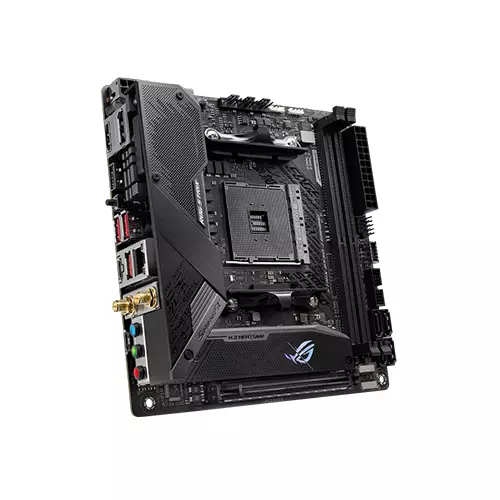

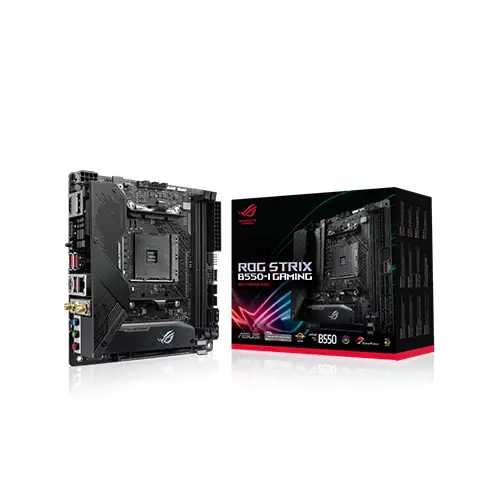

Name: ASUS ROG STRIX B550-I AMD WiFi Gaming Motherboard
Brand: Asus
Availability: OutOfStock

ASUS ROG STRIX B550-I AMD WiFi Gaming Motherboard

Out Of Stock

ASUS ROG STRIX B550-I AMD WiFi Gaming Motherboard
Stock Status	Out Of Stock
Product ID	16966
Brand	Asus
Product model	ROG STRIX B550-I
Warranty	3 years
Total Reviews	Based on 0 reviews. - Write a review

Based on 0 reviews. - Write a review

Out Of Stock

Add to Wish List Compare this Product

Key Features

AM4 socket

Smooth networking

Intel 2.5Gb Ethernet

dual M.2 with heatsinks

View details

Product Information Declaimer

Stock availability is subject to change. Please confirm availability before shopping by calling us.
The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.

Processor
Supported CPU	AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Mainboard
Chipset	B550 Chipset
Memory
Memory	AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory * OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Storage
Supported Storage	AMD RyzenTM 4000 G-Series Processors : AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
Graphics
Graphics	1 x HDMI 2.1(4K@60HZ) 1 x DisplayPort 1.4
Audio & Microphone
Audio	SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A - Rear audio USB Type-C® port - LED-illuminated design - Audio Shielding - Premium Japanese audio capacitors - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback
Networking & Connectivity
LAN	Intel I225-V 2.5Gb Ethernet ASUS LANGuard
WiFi	2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Intel® Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160
Ports
Slots	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x16 mode
Internal I/O Ports	1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x VRM_HS_FAN Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector

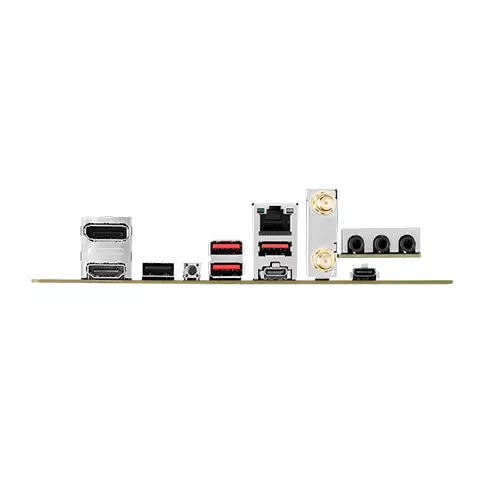

External I/O Ports	1 x ROG audio USB Type-C® cable 1 x Panel cable 2 x M.2 Screw Package User´s manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x M.2 bracket 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card
USB	4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C® +3 x Type-A) 1 x USB 2.0 port(s)(1 x audio USB Type-C® ) Front USB Port ( Total 5 ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®) Rear USB Port ( Total 6 ) 1 x USB 2.0 port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s)
Technical Info
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Physical Specification
Form Factor	Mini ITX Form Factor
Dimension	6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Warranty Information
Warranty	3 Year

ASUS ROG STRIX B550-I Motherboard in Bangladesh

ROG Strix B550 Gaming series motherboards offer a feature-set usually found within the higher-end ROG Strix X570 Gaming series, including the newest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-I Gaming is prepared to become your next compact gaming build.

AMD AM4 socket

ASUS ROG STRIX B550-I Motherboard Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

connectivity

ASUS ROG STRIX B550-I Motherboard has PCIe 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.4 output

Smooth networking

ASUS ROG STRIX B550-I Motherboard Onboard WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard

Robust power solution

ASUS ROG STRIX B550-I Motherboard Teamed power stages with ProCool II power connector, high-quality alloy chokes, and sturdy capacitors

Renowned software

Intuitive dashboards for UEFI BIOS and ASUS AI Networking make ASUS ROG STRIX B550-I Motherboard easy to configure gaming builds

Unmatched personalization

ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header

Gaming Audio

Audio USB Type-C, AI Noise Canceling Microphone, ASUS ROG STRIX B550-I Motherboard SupremeFX S1220A codec, DTS Sound Unbound, and Sonic Studio III for immersive audio
