| Stock Status | Up Coming |
| Product ID | 16684 |
| Brand | NZXT |
| Product model | NZXT B550 N7 |
| Warranty | 3 years |
| Total Reviews | Based on 0 reviews. - Write a review |
| Processor | |
| Supported CPU | Supports AMD Socket AM4 Ryzen Processors (3000, 4000, and 5000 Series Processors)* *Not compatible with AMD Ryzen 5 3400G and Ryzen™ 3200G |
| Mainboard | |
| Chipset | AMD B550 |
| Memory | |
| Memory | 4 x DIMM, Max. 128GB, DDR4 Dual-channel memory architecture AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(O.C.)/ 4600(O.C.)/ 4533(O.C.) /4466(O.C.)/ 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Matisse) support DDR4 4666+(O.C.)/ 4600(O.C.)/ 4533(O.C.) /4466(O.C.)/ 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Renoir) support DDR4 4733+(O.C.)/ 4666(O.C.)/ 4600(O.C.)/ 4533(O.C.) /4466(O.C.)/ 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* Support Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots |
| Storage | |
| Supported Storage | AMD® B550 Chipset 1 x M2_1: M.2 type 2242/2260/2280 (PCIe 4.0 x4 mode (with Matisse & Vermeer) or PCIe 3.0 x4 (with Renoir)) 1 x M2_2: M.2 type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode) 6 x SATA 6Gb/s ports* Support RAID 0/1/5/10, NCQ, AHCI and Hot Plug * M2_2 and SATA3_5_6 share lanes. |
| Graphics | |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* *Actual support may vary by CPU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB with 32GB system memory installed. Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, HDR and HDCP 2.3 Supports Microsoft PlayReady® |
| Audio & Microphone | |
| Audio | Realtek® ALC1220 Codec 8-Channel High Definition Audio, 32-bit /192KHz DAC 120dB SNR DAC with Differential Amplifier NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm impedance headsets) Nichicon Fine Gold Series Audio Capacitors 15μ Gold Audio Connector and Gold Audio Jacks |
| Networking & Connectivity | |
| LAN | Realtek RTL8125BG 2.5G LAN Support Wake-On-LAN Supports Energy Efficient Ethernet 802.3az |
| Ports | |
| Slots | AMD Ryzen Series CPUs (Vermeer) 2 x PCIe x16 Slots (PCIe1: Gen4x16 mode; PCIe3: Gen3 x4 mode) AMD Ryzen Series CPUs (Matisse) 2 x PCIe x16 Slots (PCIe1: Gen4x16 mode; PCIe3: Gen3 x4 mode) AMD Ryzen Series CPUs (Renoir) 2 x PCIe x16 Slots (PCIe1: Gen3x16 mode; PCIe3: Gen3 x4 mode) Supports AMD Quad CrossFireX™ and CrossFireX™ Supports NVMe SSD as boot disks 2 x PCIe 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module |
| Internal I/O Ports | 1 x 24-pin ATX power connector 1 x 8+4-pin ATX 12V power connector 1 x 4-pin CPU_FAN connector(1) 1 x 4-pin AIO_PUMP connector(2) 5 x 4-pin SYS_FAN connectors(2) 2 x NZXT RGB LED connectors(3) 1 x 5V ARGB LED connector(4) 1 x 12V RGB LED connector(5) 3 x USB 2.0 header (Up to 6 USB 2.0 ports) 2 x USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports) 1 x USB 3.2 Gen2 front panel header (For USB Type-C) 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 4.0 x4 mode (with Matisse & Vermeer) or PCIe 3.0 x4 (with Renoir)) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x2 & SATA mode) 1 x M.2 Socket 1 with E Key, (For wireless cards) 1 x Front panel audio connector 1 x Power button 1 x Reset button 4 x POST LEDs |
| External I/O Ports | 2 x USB 2.0 ports 3 x USB 3.2 Gen 2 port 1 x USB 3.2 Gen 2 Type-C port 4 x USB 3.2 Gen 1 ports 1 x HDMI™ port 2 x Wireless antenna SMA connectors 1 x Clear CMOS button 1 x BIOS Flashback button 1 x LAN (RJ45) port 1 x Optical S/PDIF Out port 1 x 5.1-Channel audio jacks |
| USB | 3 x USB 3.2 Gen 2 ports (3 at back panel) 1 x USB 3.2 Gen 2 Type-C (at back panel) 1 x USB 3.2 Gen 2 front panel port (For USB Type-C) 8 x USB 3.2 Gen 1 ports (4 at back panel, 4 at mid-board) 8 x USB 2.0 ports (2 at back panel, 6 at mid-board) |
| Physical Specification | |
| Form Factor | ATX |
| Warranty Information | |
| Warranty | 03 Years Warranty |

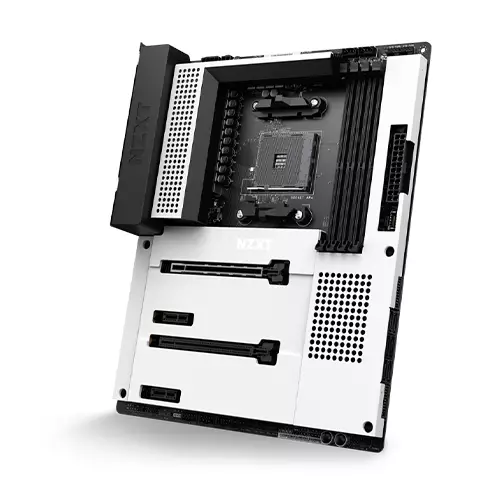

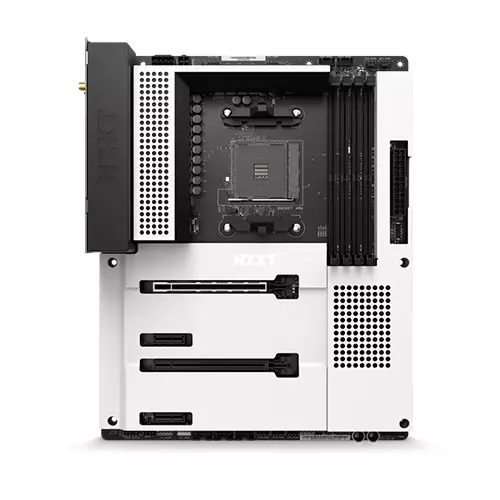

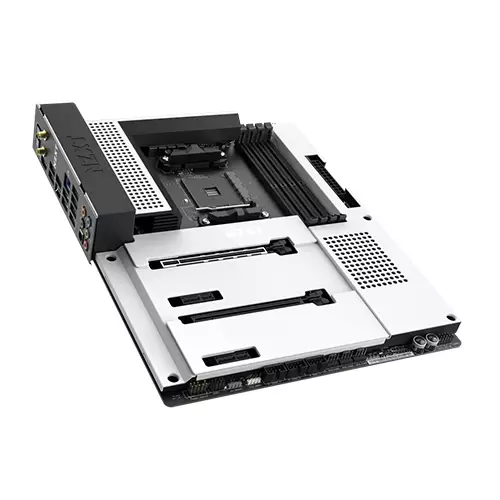

NZXT B550 N7 Motherboard

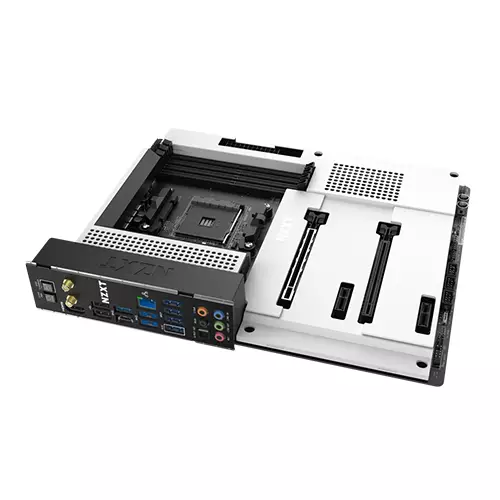

The NZXT B550 N7 Matte White AM4 ATX Gaming Motherboard From NZX. Designed around AMD’s B550 chipset, the NZXT B550 N7 Motherboard delivers everything you need to build an incredible gaming PC. Features include built-in Wi-Fi 6E connectivity, integrated fan controller, front panel USB 3.2 Gen2 Type-C, RGB accesories supported across all manufacturers, and more. The NZXT B550 N7 Motherboard cover perfectly matches the color and finish of your NZXT case, creating a visually seamless backdrop for your components. Wi-Fi 6E connectivity with updated specs for B550 chipset.Digital RGB lighting control through CAM: advanced lighting with numerous presets and custom modes and compatibility across the board for all lighting accessories. NZXT B550 N7 Motherboard Has Digital fan control: convenient fan profiles within CAM for seven independent fan channels. Integrated rear I/O shield and efficient layout ensures straightforward and optimal setup with easy upgradeability. Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors), Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2 .Two M.2 connectors for storage devices.Multi-GPU support with AMD CrossFireX™ Technology. NZXT B550 N7 Motherboard Supports memory overclocking speeds of up to 4600+ MHz and XMP. NZXT B550 N7 Motherboard has 8-channel high-definition audio.
